KLQ6142
Download as a Word document Download as PDF document

model: KLQ61421

ENGINE
Model Rated Power (Kw/rpm) Emission Fuel Tank Capacity (L)
Cummins ISME 420, line 6 cylinder, turbo-intercooler, BOSCH common rail electronic fuel injection, located behind420 HP, 11000 ccmEuro 4--/--
CHASSIS
Gear Box: Manual 6-speed Direct - FAST
Clutch: 430 SACHS clutch
Axle: The front axle independent suspension, disc brake, ECASS - WABCO valve bag, 2 airbags + 2 shock absorbers Rear axle disc brake, WABCO valve bag, 4 airbags + 4 shock absorbers Auxiliary shaft rotational Michelin tubeless tires, 295/80R22.5, (Aluminijiumske rims optional)
Braking System: Wabco ABS/ARS/EBS sistem protiv proklizavanja točkova, VOITH retarder Cummins ECU ograničenje brzine
Suspension System:
Steering System:
BODY
Body: Šasija samonosiva (SETRA sistem), Servo volan podesiv ZF8098, pocinačani lim, poklopci prtljažnika od alminiuma, savremena elektrokatodna antikorozivna zaštita-potapanje, dodatna antikorozivna zasštita donjeg dijela, dupla stakla-tamna, dvoje pneumatskih vrata,dvostruko zaptivanje, 2 krovni otvor, gornje vjetrobransko staklo sa grijanjem, sistem za odmagljivanje, DUPON boja,
Passenger Door:
Window:

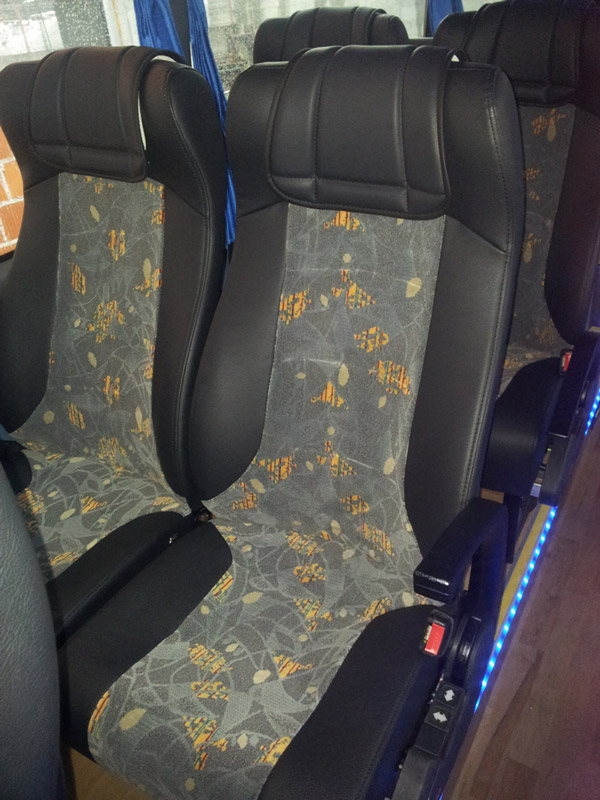

Seat: 57+1+1+WC
Audio-visual System: Radio ACTIA-ACT DVD.MP3 500 + 3x17 "LCD Monitor (two folding, one fixni)
A/C Klima uredjaj KONVEKTA- krovno motiran sa automatskom funkcijom, Bitzer ili Bock klima kompresor, Posebna klima za vozača, Dodatni vodeni grijač WEBASTO sa radiatorima,

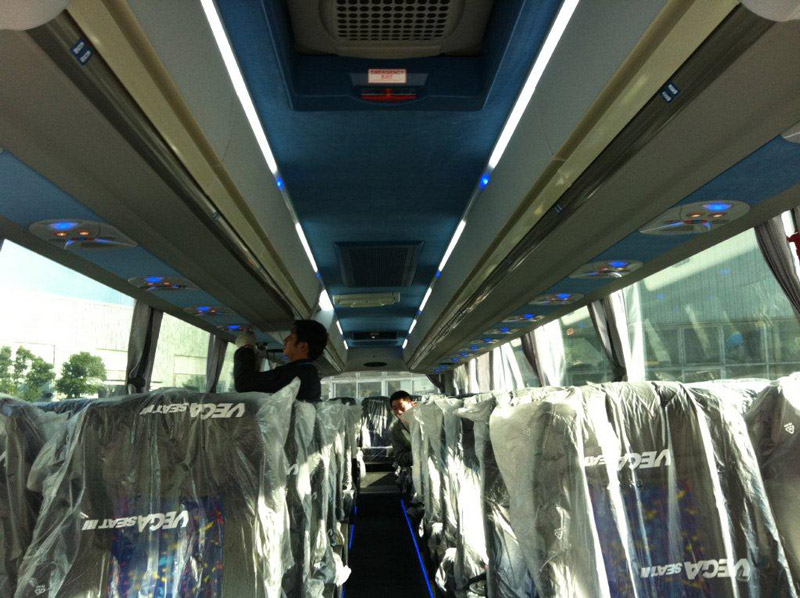

Interior Vozečevo seat, air suspension from, passenger seat with a folding seat, moving to the side and belt with two or three points, half leather (the leather option completely). VEGA, the tracks and the possibility of setting!   Digitlni hour. Fridge. Sun visors for driver and passenger. Heated mirrors with manually-adjustable. Brackets for ski'box. Speaker for the driver and front passenger, light for the driver and front passenger. Cruise control, LED light on the stairs WC Under the LG Multi with imitation wood of your choice. Excerpts of Lavazza coffee machine. (Coffemachine optional) (Wireless internet in the bus-optional in the development stage) Air caps! Sleeper driver!
Service Facilities
Other Anti-fog,
DIMENSIONS
L*W*H (mm): 13700 x 2550 x 3900
Wheelbase (mm):
Overhang Front/Rear (mm):
WEIGHT
Manufacturer's Max Total Mass (kg):
Complete Vehicle Kerb Mass (kg):
Seating Capacity: 57+1+1+WC
PERFORMANCE
Max. speed>= (km/h): 105 limit
Fuel Consumption(Rated Condition) (L/100km):
Approach/Departure Angle >=(degree):
