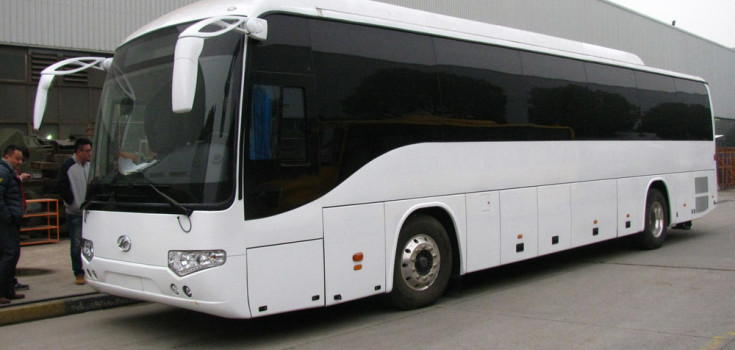

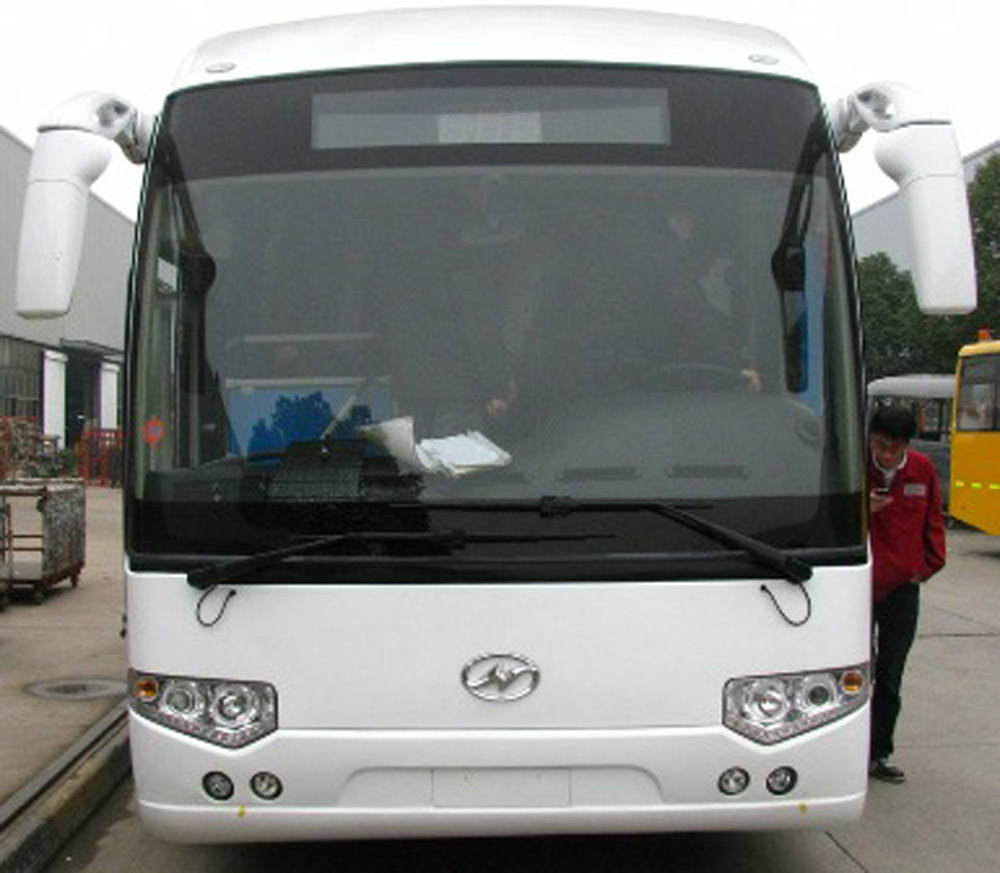

KLQ6129T
Download as PDF document View video presentation

model: KLQ6129T1

ENGINE
Model Rated Power (Kw/rpm) Emission Fuel Tank Capacity (L)
ISLe5360 Cummins Euro 5, in-line 6 cylinder Turbo intercooler, BOSCH common rail electronic fuel injection, located behind360 hp, 8900 ccEuro 5400
CHASSIS
Gear Box: manual FAST6DS180
Clutch: 430 SACHS clutch
Axle: Rigid front axle, disc brake, wabco valves pillows, 2 air bag suspension + 2 Rear axle drum brake, WABCO valve bag, 4 airbags + 4 shock absorbers Michelin tubeless tires, 295/80R22.5, (Aluminijiumske rims optional)
Braking System: Wabco ABS / ASR / ESP traction control, stabilization system THELMA electromagnetic retarder Cummins ECU speed limit
Suspension System:
Steering System:
BODY
Body: Power steering adjustable ZF8098, Galvanised steel, trunk lids of alminiuma, modern elektrokatodna corrosion protection-dipping, additional corrosion protection of the lower, double glass-dark, two pneumatic doors, double sealing, 2 sunroof, demisting system, DUPON colors

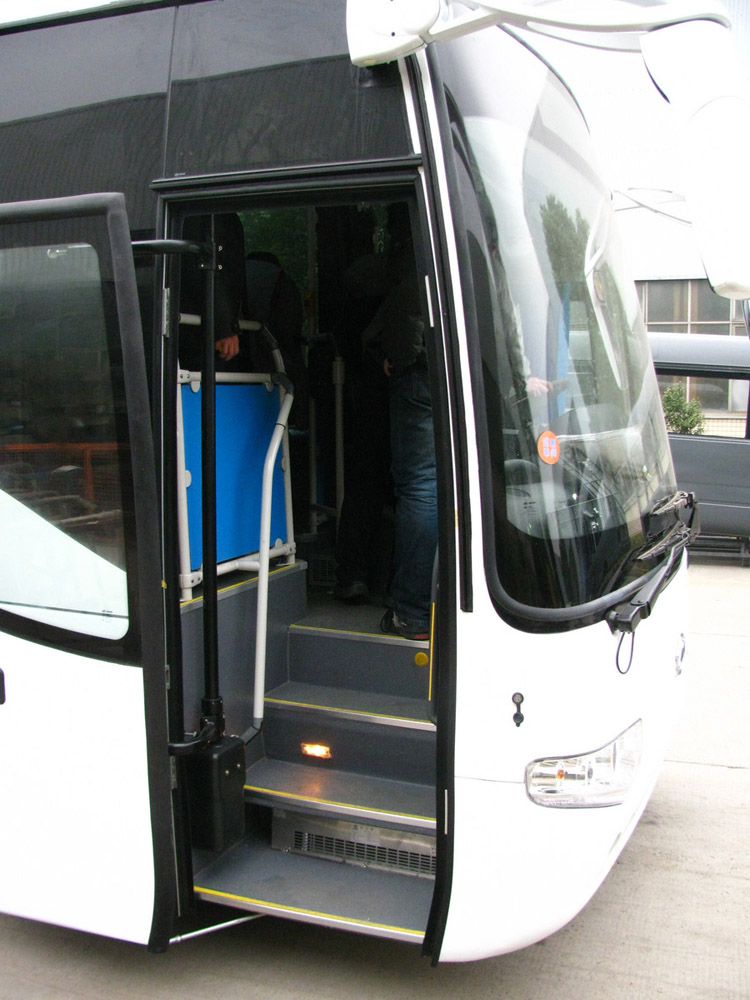

Passenger Door:
Window:

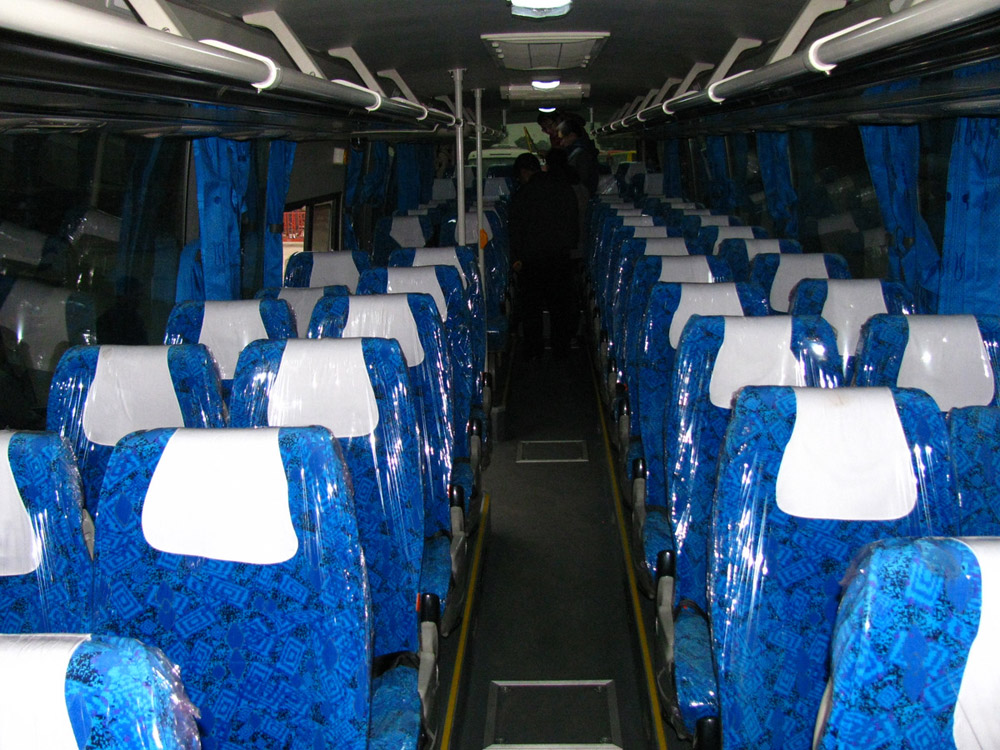

Seat:
Audio-visual System:
A/C

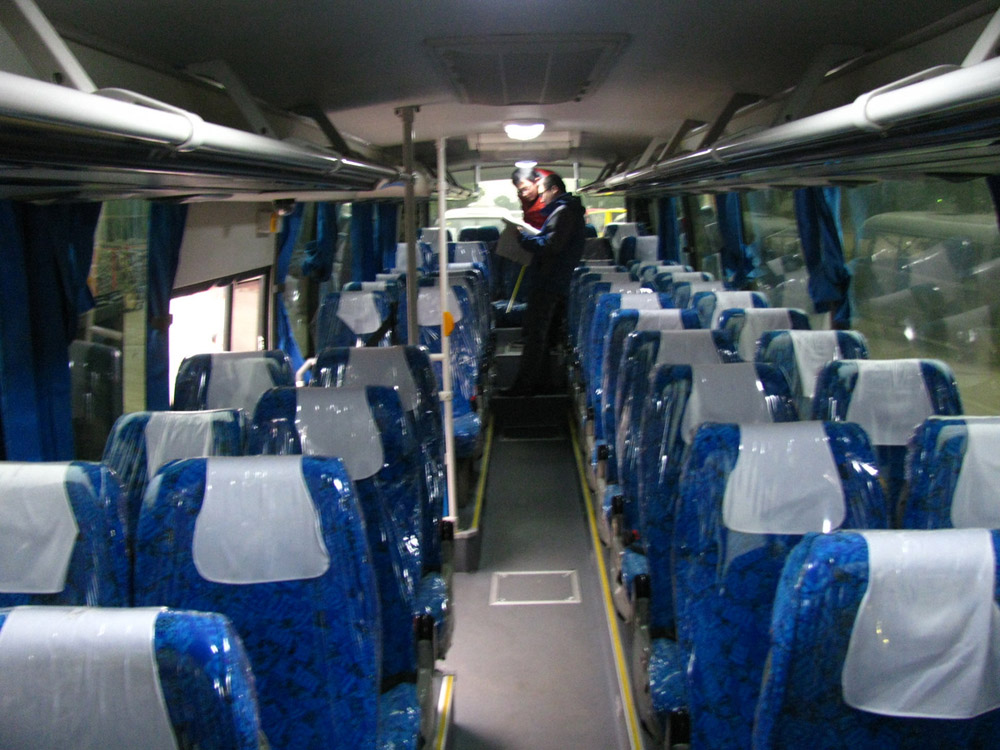

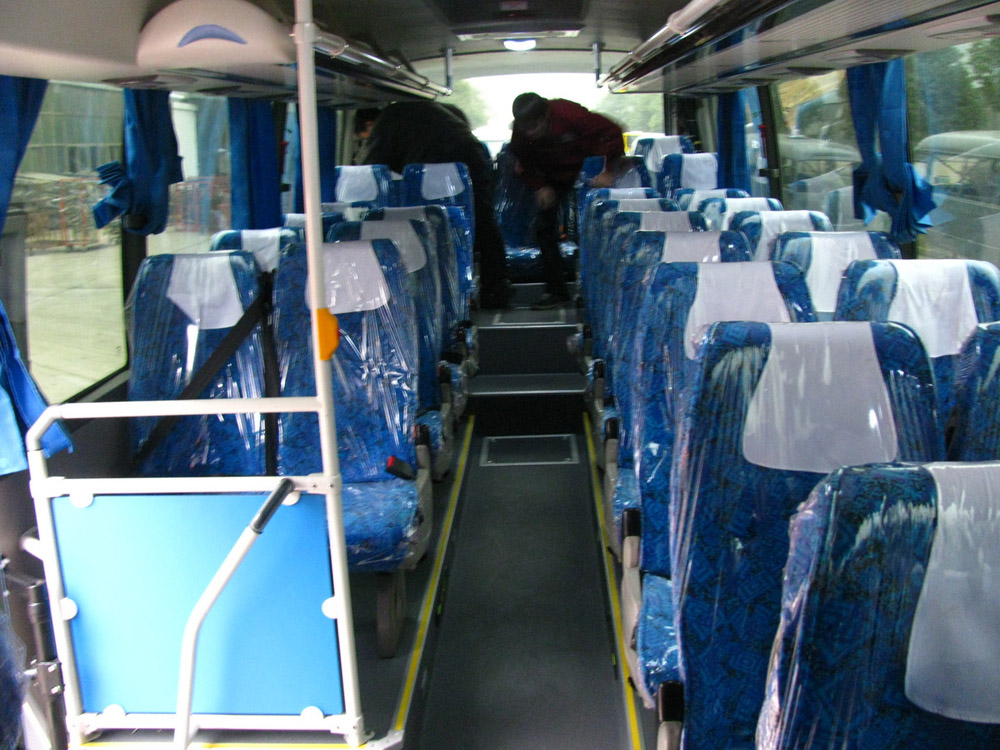

Interior
Service Facilities

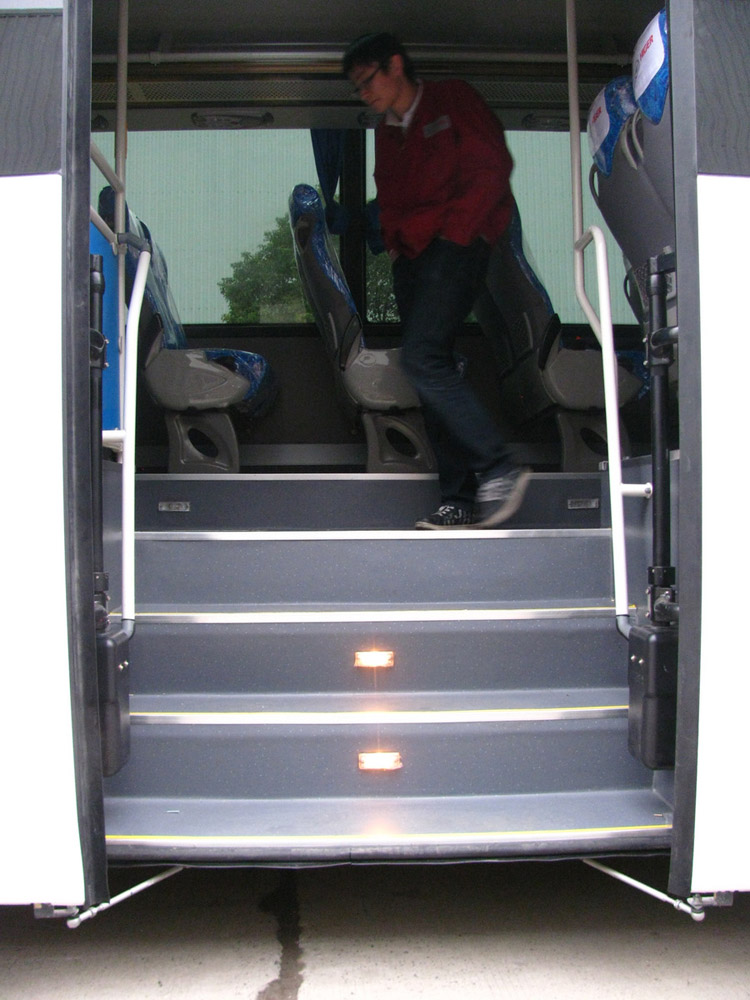

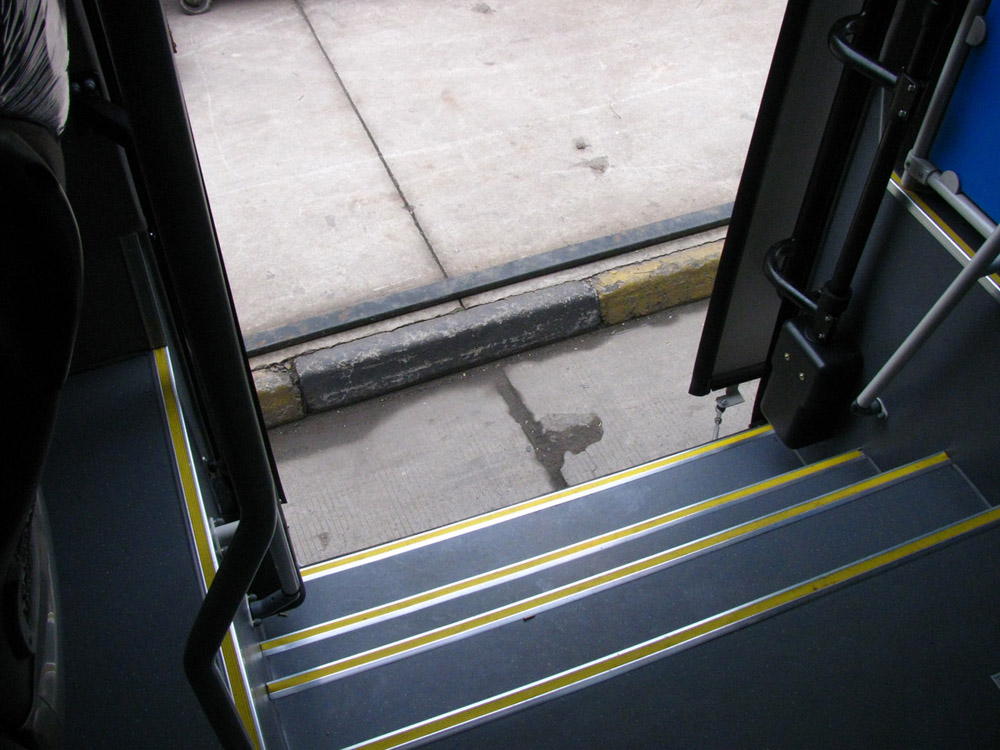

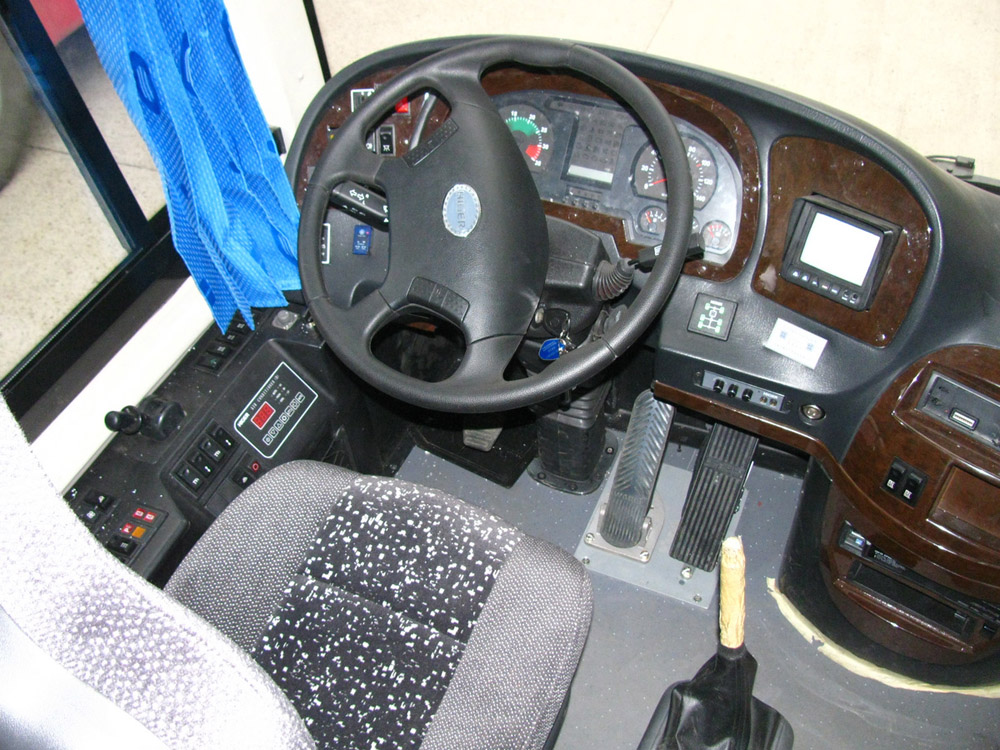

Other Air conditioner KONVEKTA roof motiran with automatic function, Bitzer and Bock compressor air, Special air for the driver (optional)   Additional water heater Webasto / SPHEROS THERMO 350 with radiators, Anti-fog, Radio ACTIA-ACT500 DVD.MP3 + 2 17 "LCD Monitor (optional can be ordered over the LCD monitor). Vozečevo air suspension from office, (Under GRAMER) Passenger seat with folding backrest, moving to the side and the belt with two or three points.   Digitlni hour. Sun visors for driver and passenger. Heated mirrors with manually-adjustable. Brackets for ski'box. Speaker for the driver and front passenger, light for the driver and front passenger. Cruise control, LED light on the stairs Under the LG Multi with imitation wood of your choice. Automatic chassis lubrication Camera for front and middle doors with non-stop recording G-BOS Diagnostic connector for Cummins engine, WABCO ABS, ECASS, 2x12V200Ah battery, alternator 2x24V 150A. Two-speed windshield wipers, fog lights, third brake light, interior lighting day and noćno.Digitalni tachograph, microphone)
DIMENSIONS
L*W*H (mm): 12300 x 2550 x 3400
Wheelbase (mm):
Overhang Front/Rear (mm): 105 limit
WEIGHT
Manufacturer's Max Total Mass (kg): 19000
Complete Vehicle Kerb Mass (kg): 11800
Seating Capacity: 53+1 (55+1)
PERFORMANCE
Max. speed>= (km/h): 105 limit
Fuel Consumption(Rated Condition) (L/100km): ≤23
Approach/Departure Angle >=(degree):
