KLQ6125
Download as a Word document Download as PDF document

model: KLQ61251

ENGINE
Model Rated Power (Kw/rpm) Emission Fuel Tank Capacity (L)
Cummins ISLe5360, linijski 6 cilindra, Turbo-interkuler, BOSCH common rail elektronsko ubrizgavanje goriva, Smješten pozadi400 KS, 8900 ccmEuro 1340/400
CHASSIS
Gear Box: ZF6S1700 manual (6-speed direct servo-amplifier) Ø430 SACHS Clutch
Clutch:
Axle: The front axle independent suspension, disc brake, ECASS - WABCO valves pillows, 2 air bag suspension 2 + Arvin Meritor rear axle disc brake, WABCO valve bag, 4 airbags + 4 shock absorbers tubeless tires Michelin 295/80R22.5, (Aluminijiumske rims optional)
Braking System: Wabco ABS / ASR traction control, ZF retarder Cummins ECU speed limit
Suspension System:
Steering System:
BODY
Body: Self-supporting chassis (SETRA system), Power Steering wheel adjustment ZF8098, Galvanised sheet metal, trunk lids of alminiuma, modern elektrokatodna corrosion protection-dipping, additional corrosion protection of the lower, double glass-dark, two pneumatic doors, double sealing, 2 sunroof, top heated windscreen, demister system, DUPON colors

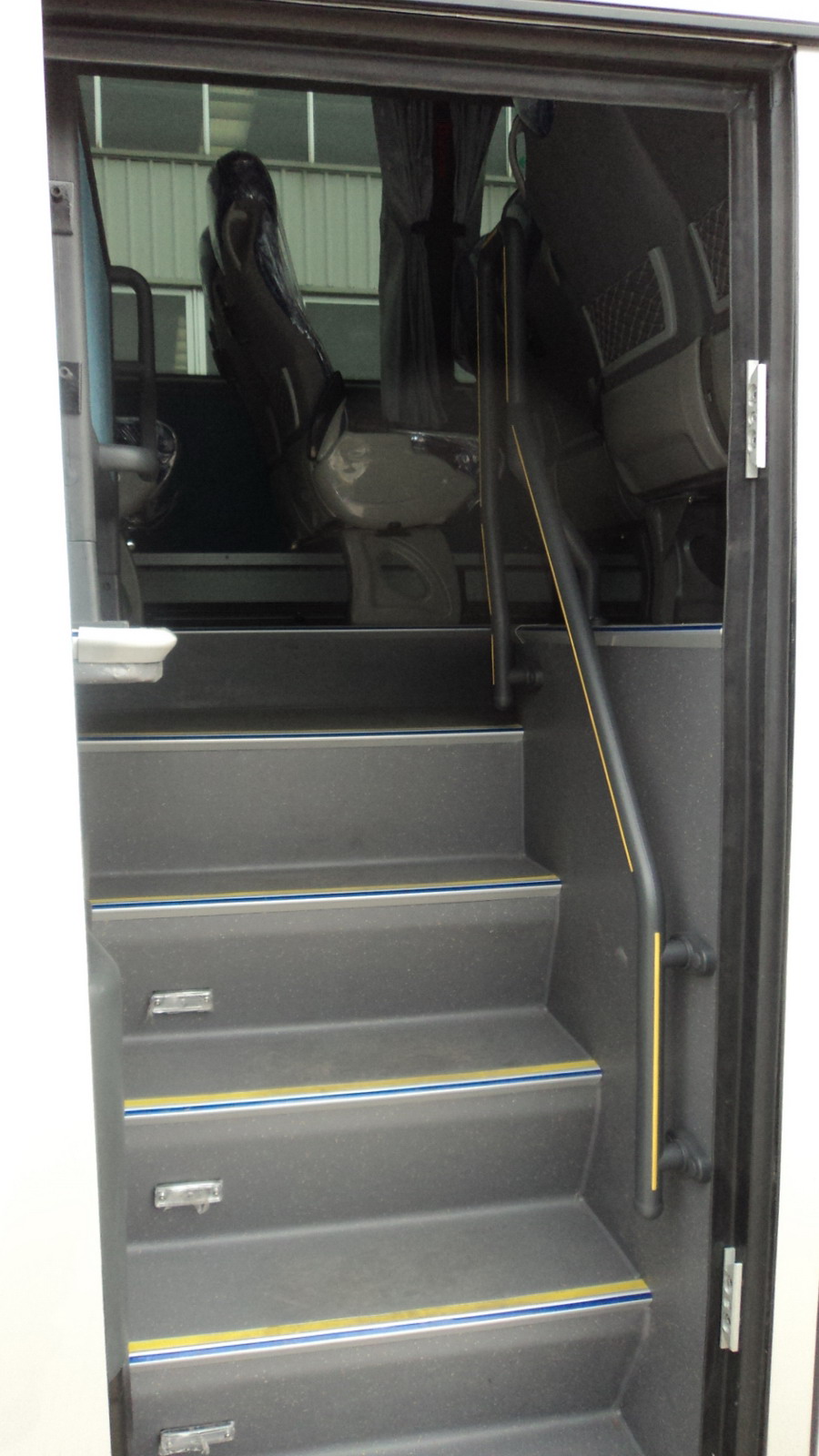

Passenger Door:
Window:
Seat: 49+1+1 (47+1+1+WC)
Audio-visual System: Radio ACTIA-ACT DVD.MP3 500 + 2 17 "LCD Monitor (optional can be ordered over the LCD monitor).
A/C Air conditioner KONVEKTA roof motiran with automatic function, Bitzer and Bock compressor air, Special Climate Driver   Additional Webasto water heater with radiators,
Interior Digitlni hour. Fridge. Sun visors for driver and passenger. Heated mirrors with manually-adjustable. Brackets for ski'box. Speaker for the driver and front passenger, light for the driver and front passenger. Cruise control, LED light on the stairs (WC and bedroom cabin for the driver in the option). Under the LG Multi with imitation wood of your choice. (Coffee hot / cold water optional) Excerpts of Lavazza coffee machine. (Coffemachine optional) (Wireless internet in the bus-optional in the development stage)
Service Facilities
Other Diagnostic connector for Cummins engine, WABCO ABS, 2x12V200Ah battery, alternator 2x24V 150A. Two-speed windshield wipers, fog lights, third brake light, interior lighting day and noćno.Digitalni tachograph, microphone)
DIMENSIONS
L*W*H (mm): 12000 x 2550 x 3800
Wheelbase (mm):
Overhang Front/Rear (mm): 105 limit
WEIGHT
Manufacturer's Max Total Mass (kg): 18000
Complete Vehicle Kerb Mass (kg): 13700
Seating Capacity: 49+1+1 (47+1+1+WC)
PERFORMANCE
Max. speed>= (km/h): 105 limit
Fuel Consumption(Rated Condition) (L/100km): ≤24 ( normal conditions )
Approach/Departure Angle >=(degree):
